# We'll do 10 replicates of cascon, but keep the split the same
set.seed(789)
sel_ = sample(which(!is.na(fit_zib_null@coefficients$X.Intercept.)), 1000) # Start with a larger sample
contigs_ = data@elementMetadata$Contig_name[sel_]
ds = SummarizedExperiment::assay(data)
ds = as.matrix(ds[sel_, cases])
zs = apply(ds, 1, function(x) length(which(x == 0))) # count zeros in each contig
set.seed(789)
zs_sel = sample(which(zs < 20), 250)
sel_pool = sel_[zs_sel] # roughly permits up to 20 zeros (20% zeros)
contig_pool = contigs_[zs_sel]
save_path = "output_rds/zeevi_sim_paper_2.rds"
if(file.exists(save_path)){
op_pa_full = readRDS(save_path)
} else {
op_pa_full = data.frame()
zero_props = seq(0.15, 0.75, by = 0.1)
scale_factors = c(seq(0.975, 0.995, by = 0.005),0.999,1)
#
# zero_props = 0.5
# scale_factors = 0.98
set.seed(789);
seeds = sample(1000, 10)[2:10]
for(s in seeds){
t = Sys.time()

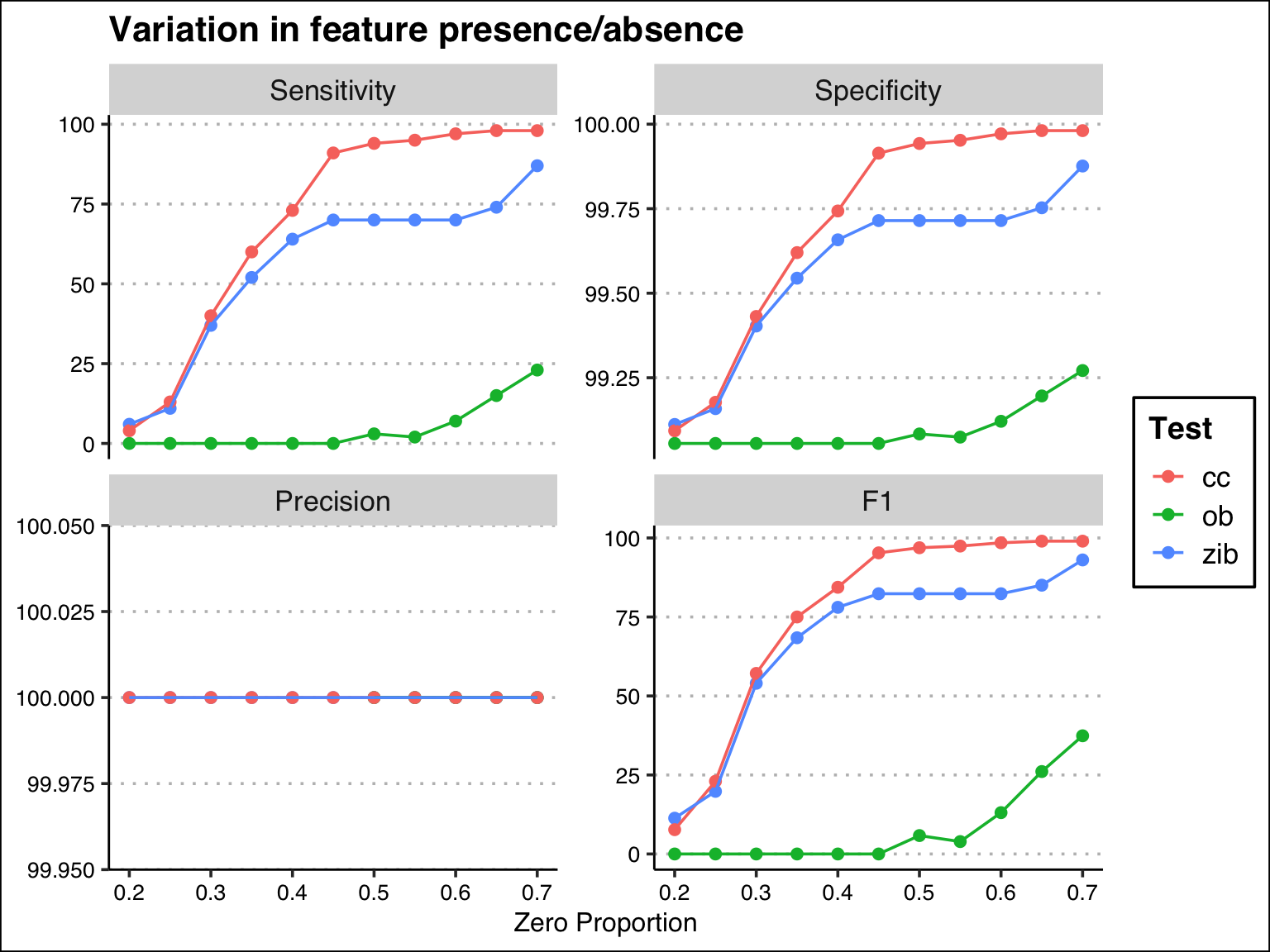

# Presence absence simulation
op_pa = data.frame()
for(zero_prop in zero_props){
exp_beta = c()
exp_zi = c()
se = data # NULL
data_matrix <- SummarizedExperiment::assay(se) # NULL
set.seed(s); subset = sample(length(sel_pool), 50) # Add some randomising
sel = sel_pool[subset]
contigs = contig_pool[subset]
vals_to_mod = data_matrix[sel, cases]
for(i in 1:length(sel)){
tmp = strainspy:::rescale_beta(x = data_matrix[sel[i], cases]/100,
beta = 1,
zi = zero_prop)
vals_to_mod[i,] = tmp$rescaled*100
exp_beta[i] = tmp$expected_beta
exp_zi[i] = tmp$expected_zi
}
# add modified counts for cases
data_matrix[sel, cases] = vals_to_mod
# Can we allow ANI < 0.95, sounds meaningless
lt95ani = which(vals_to_mod < 95 & vals_to_mod != 0)
if(length(lt95ani) > 0) {
cat("Set", length(lt95ani), "values to 0\n")
vals_to_mod[lt95ani] = 0
}
# add modified assay back to se
SummarizedExperiment::assay(se) <- data_matrix
fit_zib_updated = strainspy:::update_fit(fit = fit_zib_null, se = se, update_idx = sel, nthreads = 10)
fit_ob_updated = strainspy:::update_fit(fit = fit_ob_null, se = se, update_idx = sel, nthreads = 10)
fit_cascon_updated = strainspy:::update_fit(fit = fit_cascon_null, se = se, update_idx = sel, nthreads = 10, min_identity = 0.97)
cat(zero_prop, "\n")
op_pa = rbind(op_pa,
cbind(s, "pa",
zero_prop,
rbind(
c("zib", strainspy:::get_confusion_mx(top_hits = top_hits(fit_zib_updated, method = "BH"), gt_contigs = contigs, all_contigs = rownames(se), print_cm = T)),
c("ob", strainspy:::get_confusion_mx(top_hits = top_hits(fit_ob_updated, method = "BH"), gt_contigs = contigs, all_contigs = rownames(se), print_cm = T)),
c("cc", strainspy:::get_confusion_mx(top_hits = top_hits(fit_cascon_updated, method = "BH"), gt_contigs = contigs, all_contigs = rownames(se), print_cm = T))
)
)
)
}
colnames(op_pa) = c("seed", "sim", "stat", "Test", "tp", "fn", "fp", "tn")
op_pa_full = rbind(op_pa_full, op_pa)

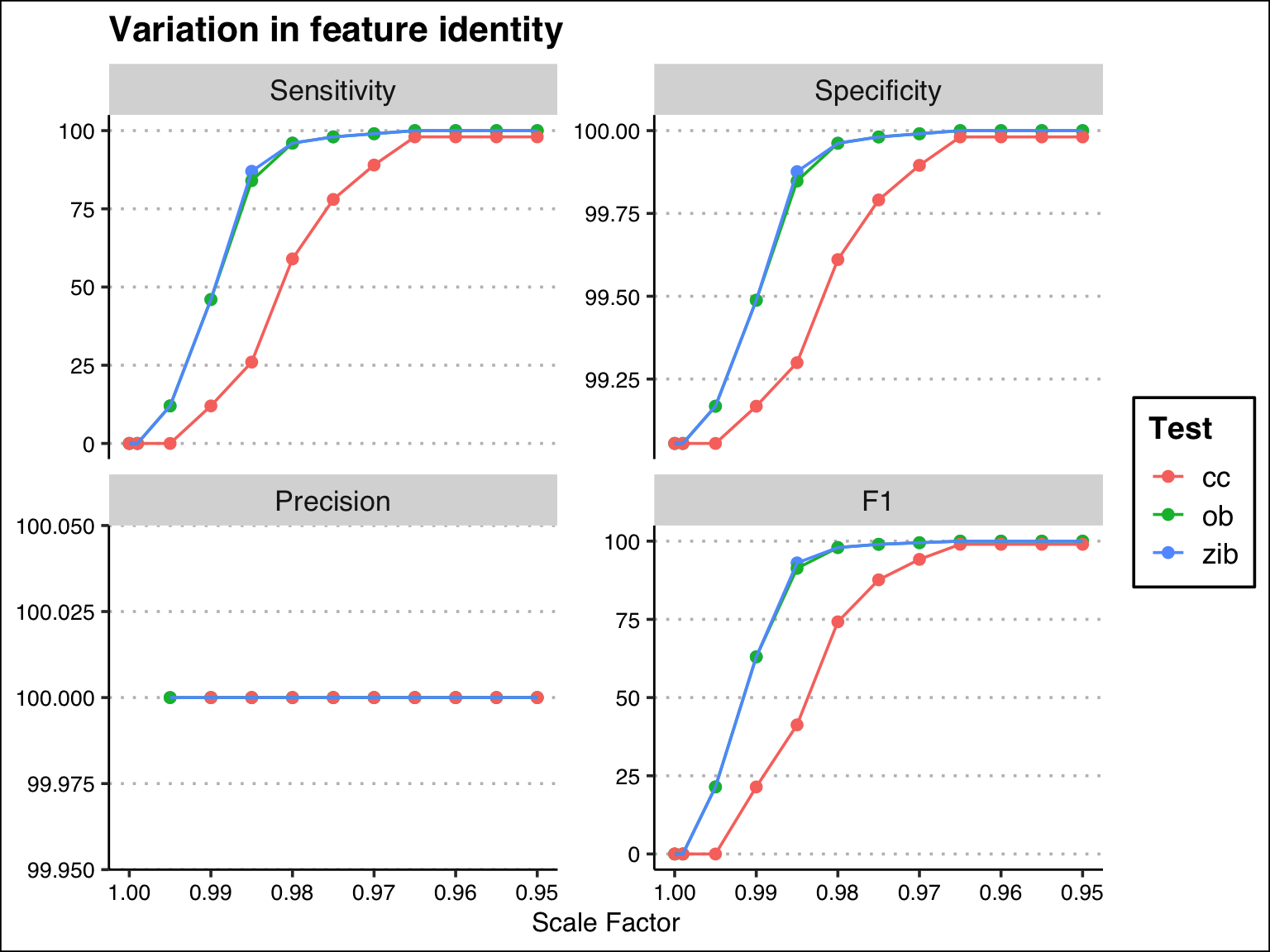

# Identity simulation
op_id = data.frame()
for(scale_factor in scale_factors){
exp_beta = c()
exp_zi = c()
se = data # NULL
data_matrix <- SummarizedExperiment::assay(se) # NULL
vals_to_mod = data_matrix[sel, cases]
for(i in 1:length(sel)){
tmp = strainspy:::rescale_beta(x = data_matrix[sel[i], cases]/100,
beta = scale_factor,
zi = 0)
vals_to_mod[i,] = tmp$rescaled*100
exp_beta[i] = tmp$expected_beta
exp_zi[i] = tmp$expected_zi
}
# Can we allow ANI < 0.95, sounds meaningless
lt95ani = which(vals_to_mod < 95 & vals_to_mod != 0)
if(length(lt95ani) > 0) {
cat("Set", length(lt95ani), "values to 0\n")
vals_to_mod[lt95ani] = 0
}
# add modified counts for cases
data_matrix[sel, cases] = vals_to_mod
# add modified assay back to se
SummarizedExperiment::assay(se) <- data_matrix
fit_zib_updated = strainspy:::update_fit(fit = fit_zib_null, se = se, update_idx = sel, nthreads = 10)
fit_ob_updated = strainspy:::update_fit(fit = fit_ob_null, se = se, update_idx = sel, nthreads = 10)
fit_cascon_updated = strainspy:::update_fit(fit = fit_cascon_null, se = se, update_idx = sel, nthreads = 10, min_identity = 0.97)
# fit_lr_updated = strainspy:::update_fit(fit = fit_lr_null, se = se, update_idx = sel, nthreads = 10, family = "binomial")
cat(scale_factor, "\n")
op_id = rbind(op_id,
cbind(s, "id",
scale_factor,
rbind(
c("zib", strainspy:::get_confusion_mx(top_hits = top_hits(fit_zib_updated, method = "BH"), gt_contigs = contigs, all_contigs = rownames(se), print_cm = T)),
c("ob", strainspy:::get_confusion_mx(top_hits = top_hits(fit_ob_updated, method = "BH"), gt_contigs = contigs, all_contigs = rownames(se), print_cm = T)),
c("cc", strainspy:::get_confusion_mx(top_hits = top_hits(fit_cascon_updated, method = "BH"), gt_contigs = contigs, all_contigs = rownames(se), print_cm = T))
)
)
)
}
colnames(op_id) = c("seed", "sim", "stat", "Test", "tp", "fn", "fp", "tn")
op_pa_full = rbind(op_pa_full, op_id)
Sys.time() - t
}
saveRDS(op_pa_full, save_path)
}
gg_facet_plot2 <- function(op, title = NULL, reverse_x = FALSE){
# Use 'stat' as the x-axis variable
op$var <- as.numeric(op$stat)
xlab_ <- if ("sf" %in% colnames(op)) {
"Scale Factor"
} else if ("z_prop" %in% colnames(op)) {
"Zero Proportion"
} else {
"Stat"
}
# Ensure proper types
op$Test <- factor(op$Test)
op <- op %>%
mutate(
tp = as.numeric(tp),
fn = as.numeric(fn),
fp = as.numeric(fp),
tn = as.numeric(tn),
Sensitivity = tp / (tp + fn) * 100,
Specificity = tn / (tn + fp) * 100#,
# Precision = tp / (tp + fp) * 100,
# F1 = 2 * tp / (2 * tp + fp + fn) * 100
)
# Convert to long format
long_op <- op %>%
pivot_longer(
cols = c(Sensitivity, Specificity), #, Precision, F1),
names_to = "Metric",
values_to = "Value"
)
long_op$Metric <- factor(long_op$Metric, levels = c("Sensitivity", "Specificity", "Precision", "F1"))
# Summarize: mean and SE over seeds
summary_op <- long_op %>%
group_by(var, Test, Metric) %>%
summarise(
Mean = mean(Value, na.rm = TRUE),
SE = sd(Value, na.rm = TRUE) / sqrt(n()),
.groups = "drop"
)
if (reverse_x) {
summary_op$var = factor(summary_op$var, levels = sort(unique(summary_op$var), decreasing = T))
} else {
summary_op$var = factor(summary_op$var, levels = sort(unique(summary_op$var)))
}
dw = 0.25
# Plot with error bars
p <- ggplot(summary_op, aes(x = var, y = Mean, color = Test, shape = Test)) +
geom_point(size = 2.5, position = position_dodge(width = dw)) +
geom_line(linewidth = 1, position = position_dodge(width = dw), aes(group = Test)) +
geom_errorbar(
aes(ymin = Mean - SE, ymax = Mean + SE),
width = 1,
linewidth = 1, # increase this value (e.g., 1 → 1.2 or 1.5)
position = position_dodge(dw)
) +
facet_wrap(~Metric, scales = "free_y") +
theme_clean(base_size = 20) +
scale_color_manual(values = c(
"#D55E00", # reddish-orange
"#0072B2", # deep blue
"#009E73" # teal/green
)) +
labs(
title = title,
x = xlab_,
y = NULL
)
# ggplot(summary_op, aes(x = var, y = Mean, col = Test)) +
# geom_point(size = 2.5) + # Increase point size
# geom_line(linewidth = 1) + # Increase line width
# geom_errorbar(aes(ymin = Mean - SE, ymax = Mean + SE), width = 0.01) +
# facet_wrap(~Metric, scales = "free_y") +
# theme_clean(base_size = 14) +
# theme(text = element_text(size = 16)) +
# labs(
# title = title,
# x = xlab_,
# y = NULL
# )
# Optionally reverse x-axis
print(p)
}

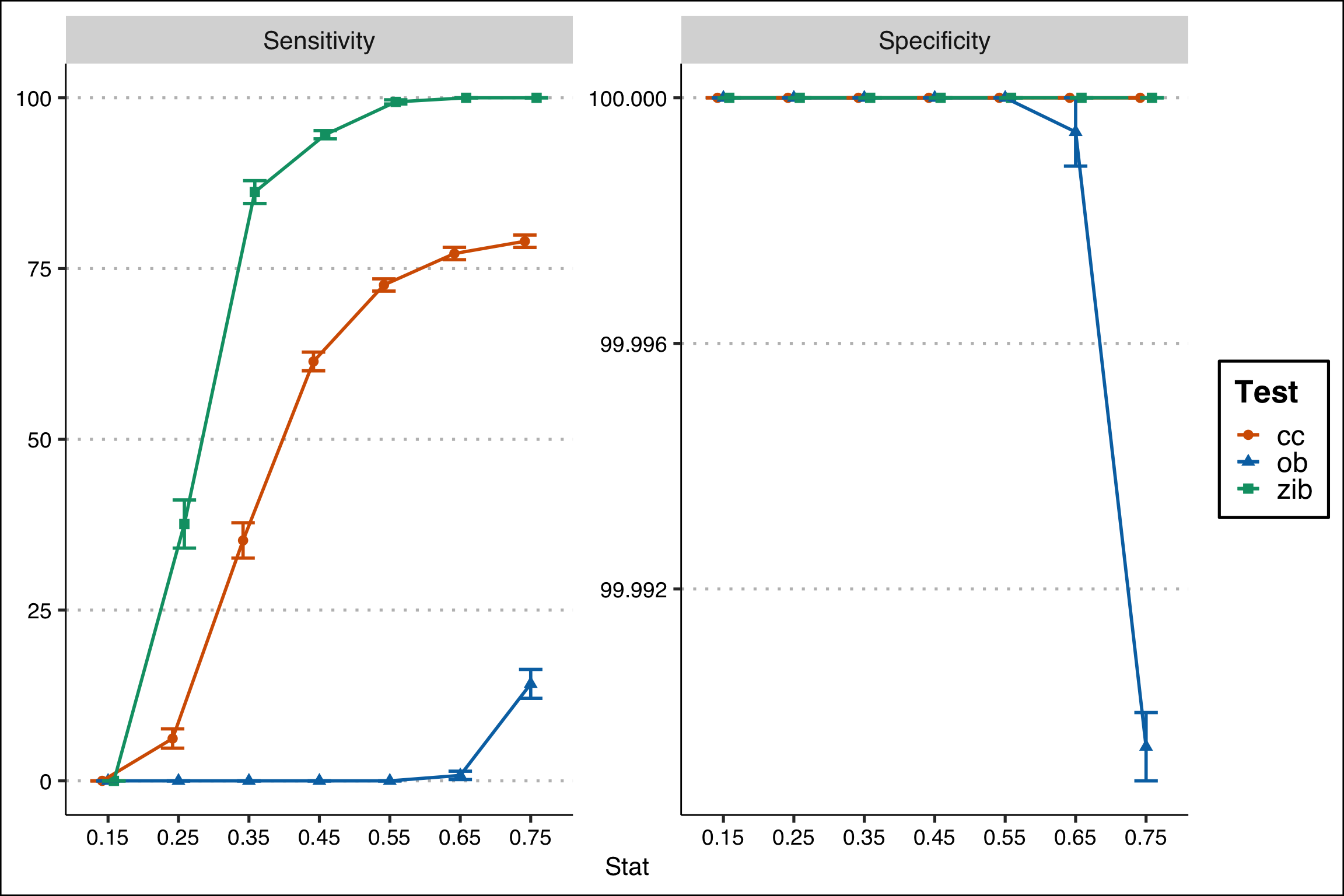

gg_facet_plot2(op_pa_full[op_pa_full$sim == "pa", ])
